The Lumanoise v.1 have one square osc, one 12bit sawtooth osc.
The oscillators pitch is controlled by a photo resistor, each oscillator have a volume pot.
A 12 db low pass resonant fi lter, specially developed by LEP for the project lumanoise,
the filter cut-off can be controlled by the potentiometer or the photoresistor.
Lumanoise works with voltage between 9 and 12 volt
direct current DC, 500 ma tip\central + .
Download manual
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

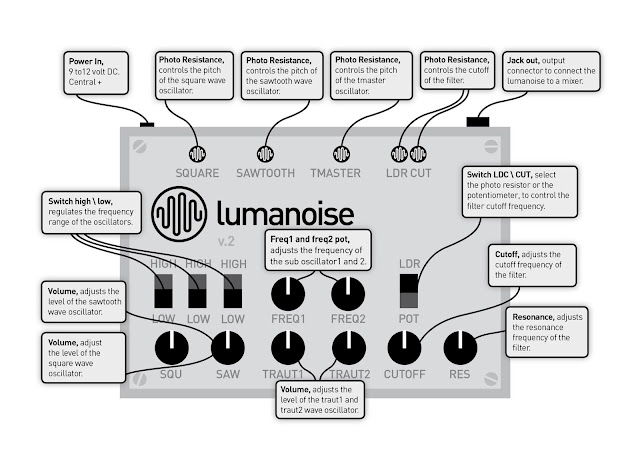

Lumanoise v2
The lumanoise v2 have one square osc. one 12bit sawtooth osc. and 2 trautonium like sub oscillator.
We were inspired by the Oskar Sala Trautonium synth. We use one Trautonium tmaster oscillator under LDR control and 2 sub oscillator, where you can set the division frequency of the tmaster oscillator.
The oscillators pitch is controlled by a photo resistor, each oscillator have a volume pot. A 12 db low pass resonant filter, the filter cut-off can be controlled by the potentiometer or the photoresistor.
direct current DC, 500 ma tip\central + .
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
808 Cymbal Drone Generator
The 808 Cymbal Drone Generator use six fixed frequency square wave oscillators.
The six oscillator cluster circuit came from the TR808 drum machine for creating cymbal sound and other metal plate sound,
in fact these are the harmonic frequencies of the sounds of metal plate.
Each of the six oscillators have a volume pot. and a 12 db low pass resonant filter, the filter cut-off can be controlled by the potentiometer or the photoresistor.
direct current DC, 500 ma tip\central + .
The 808 cymbal drone generator is available also in the euro rack format, same function as the table top version but you can control the cut off frequency of the lp filter via cv. A vactrol circuit is used for the cv in and a cv amount pot. works as an attenuator.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Lumanoise v3
The Lumanoise V3 have tow sawtooth oscillator, SAW1 for bass frequencies, SAW2 for the high frequency, a white noise generator and a 12 db low pass resonant filter. The oscillators pitch is controlled by a photo resistor sensible to the intensity light. Tree potentiometer for control the oscillator and noise generator volume a high\mid\low switch for the oscillators range.
A 12 db low pass resonant filter, specially developed by LEP for the project lumanoise, the filter cut-off can be controlled by the potentiometer or the photo resistor.
Lumanoise works with voltage between 9 and 12 volt
direct current DC, 500 ma tip\central + .
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Lumanoise v4
The Lumanoise V4 heve 4 trautonium like sub oscillator. We were inspired by the Oskar Sala Trautonium synth oscillator section. We use a T. master oscillator under LDR control and 4 sub divider oscillator, where you can set the division frequency of the T. master, divider n°4 divide the n°3. Each oscillator have a volume pot, it is possible to connect an external LDR or a variable resistor, a high\mid\low switch for the T. master oscillator range.
A 12 db low pass resonant filter, the filter cut-off can be controlled by the potentiometer or the photo resistor.
Lumanoise works with voltage between 9 and 12 volt
direct current DC, 500 ma tip\central + .
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Lumanoise v5
The Lumanoise V5 have a white noise generator, an external mono audio in and a 12 db low pass resonant filter.
If you connect the small solar panel to the audio input you can amplified the sound the solar panel produce with different type of light, solar panel is sensible to a wild range of light frequencies, while ldr is sensible only to the intensity of light.
Tow potentiometer for control the audio in and white noise generator volume.
A 12 db low pass resonant filter, specially developed by LEP for the project lumanoise, the filter cut-off can be controlled by the potentiometer or the photo resistor.
Lumanoise works with voltage between 9 and 12 volt
direct current DC, 500 ma tip\central + .
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
MONOCASSA
Based around the LepLoop V2 cassa design.
It have an internal tempo\trig generator, tow LDR for control the frequency and resonance, can be set on/off by dedicated switch.
The External trig in, can accept trig\ cv \ gate \ audio \ solar panel \ piezo mic signal.
It have an internal tempo\trig generator, tow LDR for control the frequency and resonance, can be set on/off by dedicated switch.
The External trig in, can accept trig\ cv \ gate \ audio \ solar panel \ piezo mic signal.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
LUMAMIX
Lumamix has four jack\mini jack audio input, jack\mini jack send\return, the send out it's pre the resonant equalizer and the return can be seen as 5° input.
The main output it's mono jack or stereo mini jack, all the channels go through the resonant equalizer where you can select the type of filter, low pass, band pass, high pass and the frequency range low, medium, high.
The equalizer can resonate, and the cut-off can be controlled via the Light Dependent Resistor, the LDR can be activated with the switch.
The gain knob set the level before the equalizer.
Lumamix works with 12v 500ma tip+.
We can also offer the Lumamix in Euro Rack format.
The Resomix 8HP with 3 input, send\return and cv control over the cutoff frequency.
