It has an internal tempo\trig generator, tow LDR for control the frequency and resonance, can be set on/off by dedicated switch.
The External trig in, can accept Trig\ CV \ Gate \ Audio \ Solar panel \ Piezo mic signal.
The External trig in, can accept Trig\ CV \ Gate \ Audio \ Solar panel \ Piezo mic signal.
Demo video:

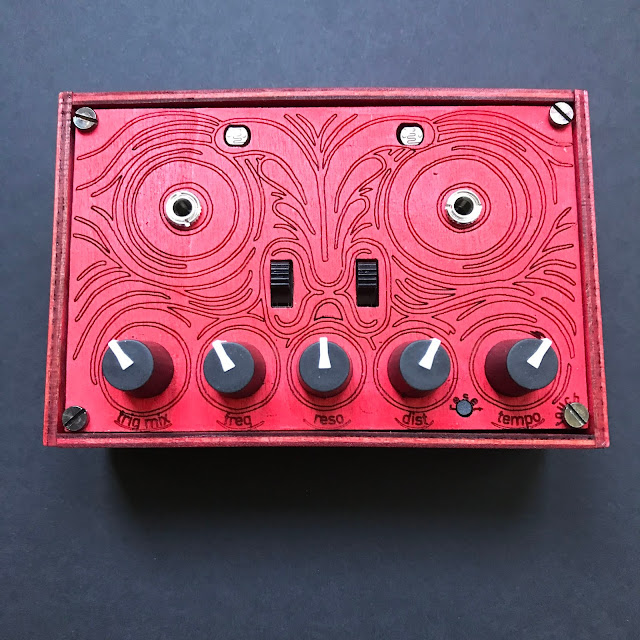

Manual:
Trig Mix pot.
Mix between the internal trig\tempo generator, all left, and the above external trig in jack.
As external trig many different signals can be used: trig, gate, cv, audio etc.
Freq. pot.
Adjusts the pitch of Cassa sound, also affects resonance.
Reso. pot.
Adjusts the resonance, i.e. the Cassa damping time.
Beyond a certain level the Cassa go into permanent oscillation.
The level at which the oscillation begins varies with frequency.
Beyond a certain level the Cassa go into permanent oscillation.
The level at which the oscillation begins varies with frequency.
Dist pot.
Adjusts the Cassa distortion level.
Tempo pot.
Adjust the internal tempo generator speed.
Reset button.
Reset the internal tempo generator.
Clock\trig out jack.
Above the tempo pot. a trig out jack for synchronize external device.
Touch screw.
To the bottom right corner, tapping the screw will doubles the tempo speed.
Switch 1\2.
These switches activate the LDR control on the frequency and resonance potentiometers.
When off, bottom position, the LDR are disconnected.
When on, top position, the LDR are connected in parallel to the potentiometer.
LDR 1 controls the frequency pot, LDR2 controls the resonance pot.
Power.
Mono Cassa accept 12v DC center positive 2mm tip.
